Caretta
Vandalproof Batten
- Colour temperature
- CCT (3000K, 4000K, 5700K)
- IP rating
- IP66
- CRI
- 80
- Wattage
- 16-50W

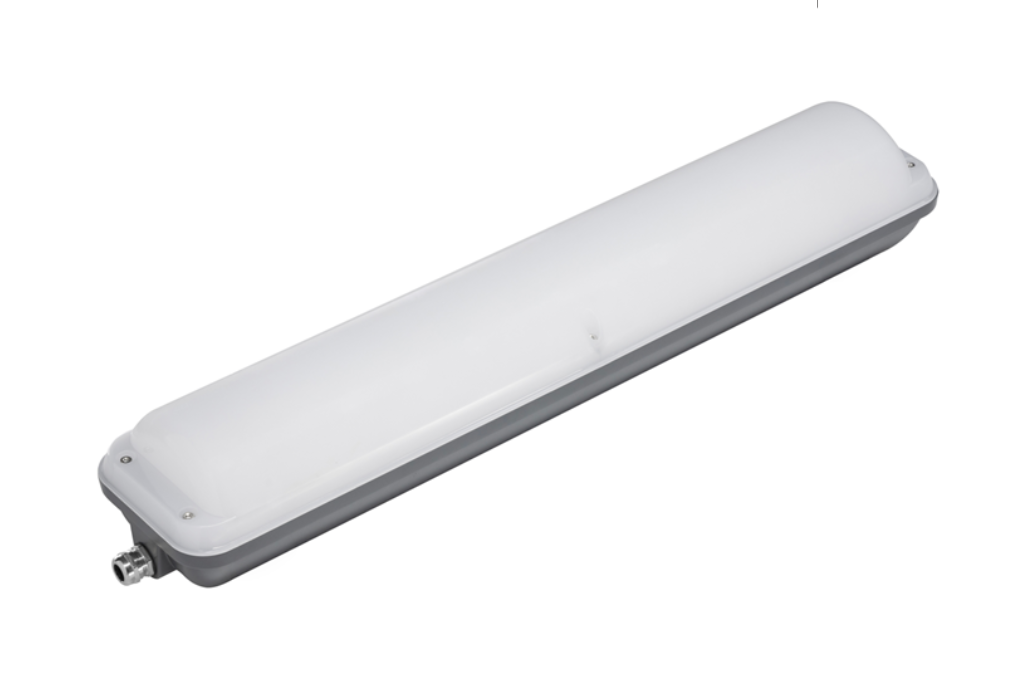

Caretta is a vandalproof surface-mounted LED batten with a grey aluminium body, rated IP66 and IK08. It has a 120° beam, CRI 80 and UGR <19, delivers 135 lm/W, and is available from 16W in 3000K, 4000K and 5700K. Control is On/Off or DALI.
Pricing, lead times and configurations are confirmed on quotation.
Specifications
Luminaire Specification
- SKU
- TN-CAR-X
- IK Rating
- IK08
- Wattage
- 16-50W
- Colour Temperature
- CCT (3000K, 4000K, 5700K)
- Beam Angle
- 120°
- IP Rating
- IP66
- Fitting Colour
- Grey
- Dimmable
- On/Off, DALI-2
- Light Source
- SMD 2835
- Efficiency (lm/W)
- 135lm/w
- CRI
- 80
- UGR Rating
- <19
- Installation
- Surface Mounted
Technical Specification
- Driver Supplied
- Tridonic
- Rated Voltage
- 220-240VAC 50-60Hz
- Working Temp
- 25 ~ +60C
- Inrush Current
- 5A 50µs
- Thermal Protection
- C.5.a.
- Body Material
- Aluminium
- Rated Hours
- 50,000hrs
- Warranty
- 5 Years
