Tadao
Backlit LED Panel Light
- Colour temperature
- CCT (2700K, 4000K, 6500K)
- IP rating
- IP20
- CRI
- 80 (URG<22), 90 (UGR<19)
- Wattage
- 22W - 55W

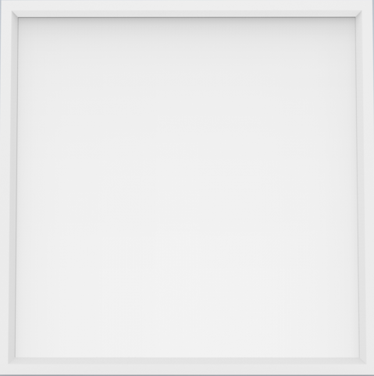

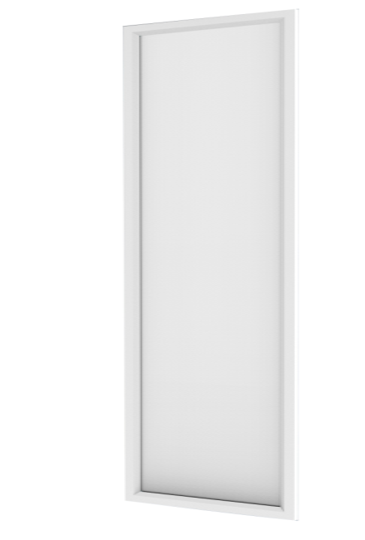

Tadao is a backlit LED panel light for recessed installation, with a 120° beam and an IP20 rating, in white. It is available in 595x595mm, 1195x295mm and 1195x595mm sizes from 22W to 55W, and delivers 130 lm/W. Choose UGR <22 with CRI 80 or UGR <19 with CRI 90, with On/Off or DALI control.
Pricing, lead times and configurations are confirmed on quotation.
Specifications
Luminaire Specification
- SKU
- TN-TAD-X
- UGR Rating
- <22 & <19
- Wattage
- 22W - 55W
- Colour Temperature
- CCT (2700K, 4000K, 6500K)
- Beam Angle
- 120°
- IP Rating
- IP20
- Fitting Colour
- White
- Dimmable
- Non-Dim, DALI-2
- Light Source Brand
- CREE LED
- Efficiency (lm/W)
- 130lm/w
- CRI
- 80 (URG<22), 90 (UGR<19)
- SDCM
- 3
- Installation
- Recessed
Technical Specification

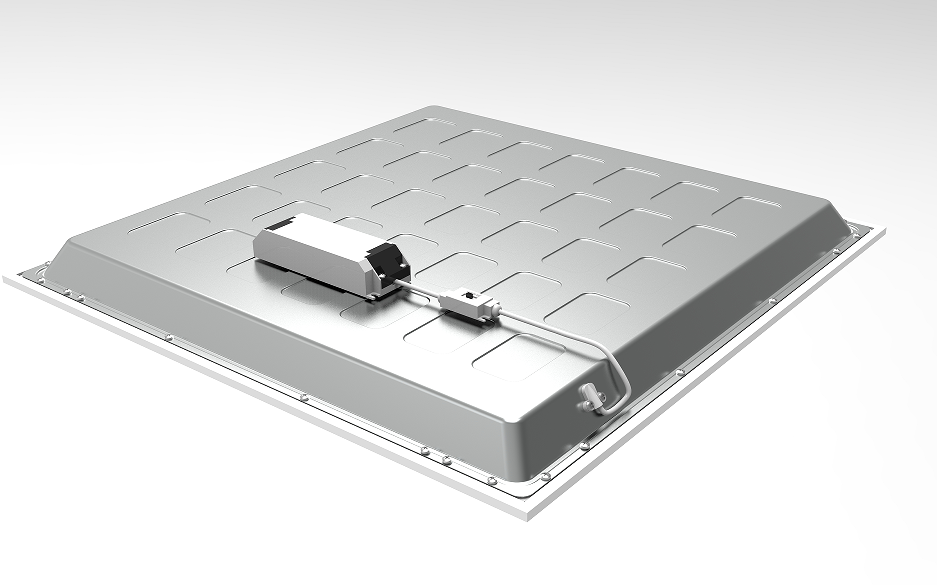

- Driver Supplied
- Integrated
- Rated Voltage
- 220-240VAC 50-60Hz
- Working Temp
- 25 ~ +60C
- Inrush Current
- 5A 50µs
- Thermal Protection
- C.5.a.
- Body Material
- Aluminium
- Rated Hours
- > 50,000hrs
- Warranty
- 5 Years
