Linear Lights

Frustum

DALI-2 Linear Light

Colour temperature
3000K, 4000K, 2700K-6000K
IP rating
IP65 (Driver Remote), IP68
CRI
90
Wattage
6W - 30W

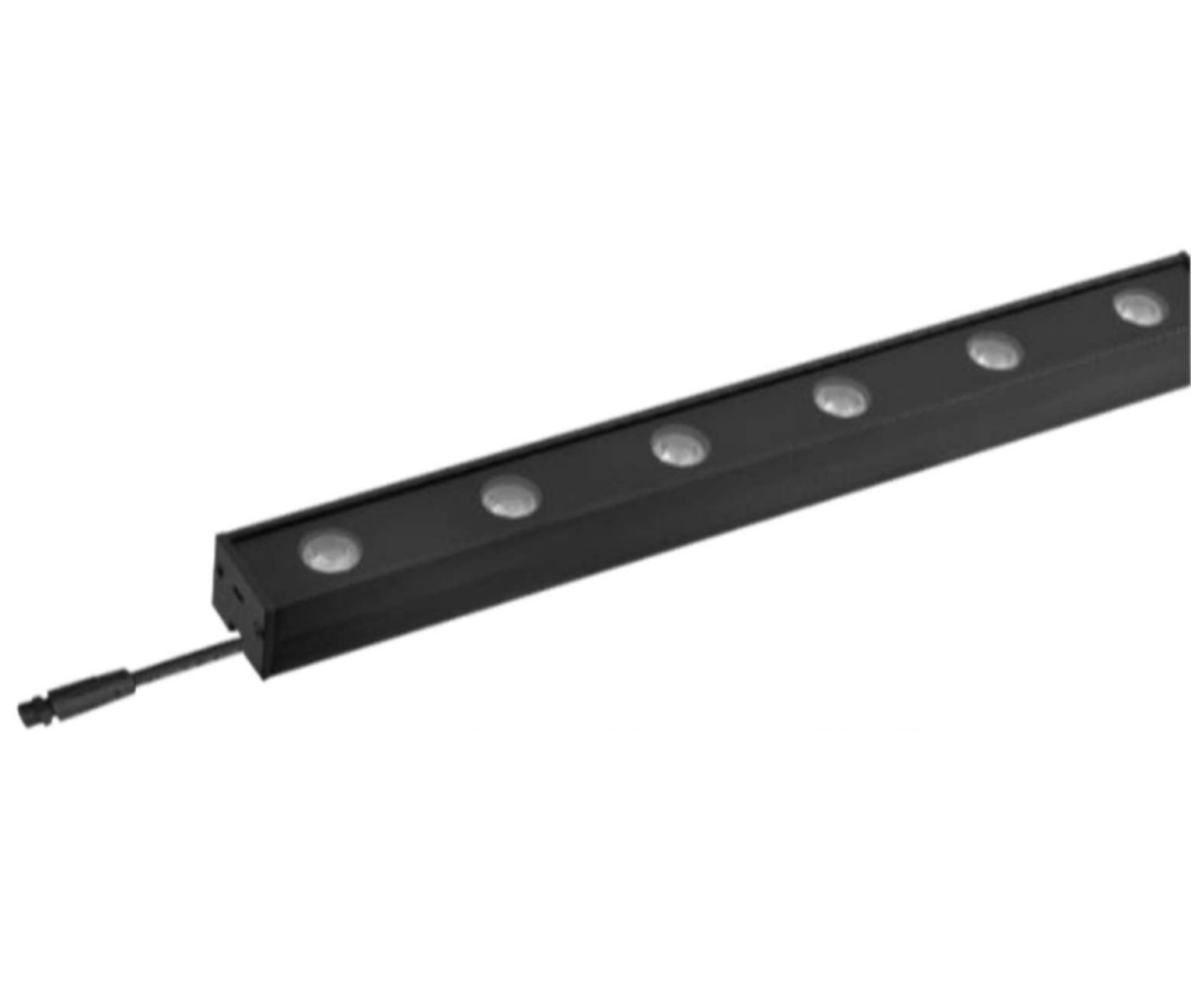

Frustum is a DALI-2 linear light with an aluminium body in black, in lengths from 200mm to 1000mm and from 6W to 30W. Beam angles are 20°, 40°, 60° and 25×45°. It is rated IP65 with a remote driver, or IP68, with CRI 90 and a choice of 3000K, 4000K or tunable white.

Pricing, lead times and configurations are confirmed on quotation.

Specifications

Luminaire Specification

SKU
TN-FRU-X
Length
200 - 1000mm
Wattage
6W - 30W
Colour Temperature
3000K, 4000K, 2700K-6000K
Beam Angle
20°, 40°, 60°, 25×45°
IP Rating
IP65 (Driver Remote), IP68
Fitting Colour
Black
Dimmable
DALI-2
Light Source Brand
CREE LED
Efficiency (lm/W)
lm/w
CRI
90

Technical Specification

Driver Supplied
Included
Rated Voltage
220-240VAC 50-60Hz
Working Temp
25 ~ +60C
Inrush Current
5A 50µs
Thermal Protection
C.5.a.
Body Material
Aluminium
