Diu Forma
LED Linear Light
- Dimensions
- Project Specific
- Colour temperature
- 3000K, 4000K, 2700-6500K, RGB(W)
- IP rating
- IP20-IP44
- CRI
- 90

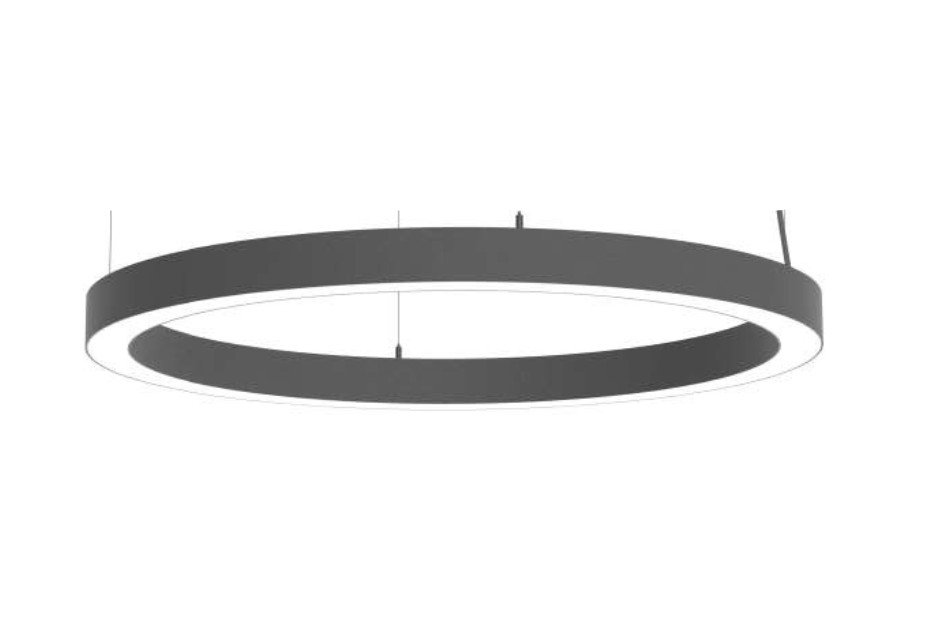

The Tunable Diu Forma extends the Diu linear platform into a range of enclosed architectural shapes, available made to order in circles, hexagons, triangles, and rectangles. Profile sizes range from 35x35mm to 80x125mm, making it a popular specification for restaurants, office lobbies, and hospitality venues where the light fitting contributes as much to the design as the light it produces.
Offered in tunable white (2700K to 6500K), single colour 3000K and 4000K, and RGBW, it supports DALI-2 dimming in direct or direct/indirect suspended configurations. CRI 90, UGR below 19, and white or black finishes ensure every custom Diu Forma delivers both output quality and design coherence across even the most ambitious interior projects.
Pricing, lead times and configurations are confirmed on quotation.
Specifications
Luminaire Specification
- Dimming
- DALI-2, On/Off
- Light Source
- SMD 2835
- Efficiency (lm/W)
- Project Specific
- Colour Temperature
- 3000K, 4000K, 2700-6500K, RGB(W)
- CRI
- 90
- UGR Rating
- <19
- SDCM
- 3
- IP Rating
- IP20-IP44
- Dimensions
- Project Specific
- Installation
- Recessed, Surface & Suspended
- IK Rating
- IK06
- Beam Angle
- 120°
Technical Specification
- Driver Supplied
- Included
- Driver Location
- Integral / Remote
- Input Voltage
- AC220-240V
- Rated Hours
- > 50,000hrs
- Working Temp
- -25°C~+50°C
- Warranty
- 5 Years
See it in action
