tunable Chelon (DALI-2 Retractable Downlight)
tunable Chelon (DALI-2 Retractable Downlight)
Please contact us for an IES File.

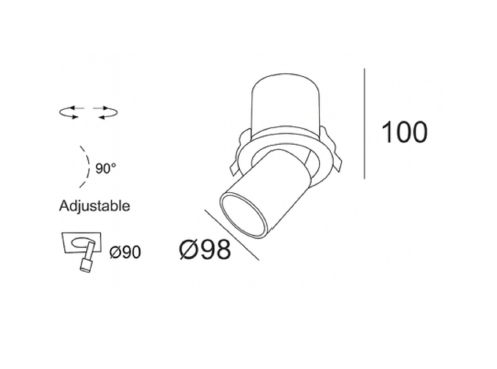

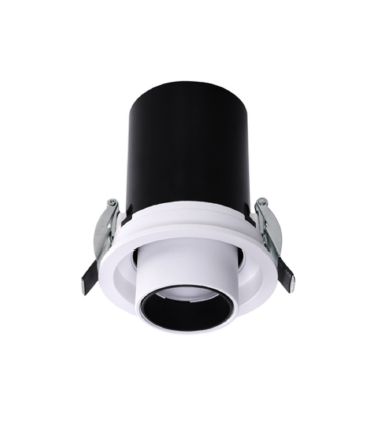

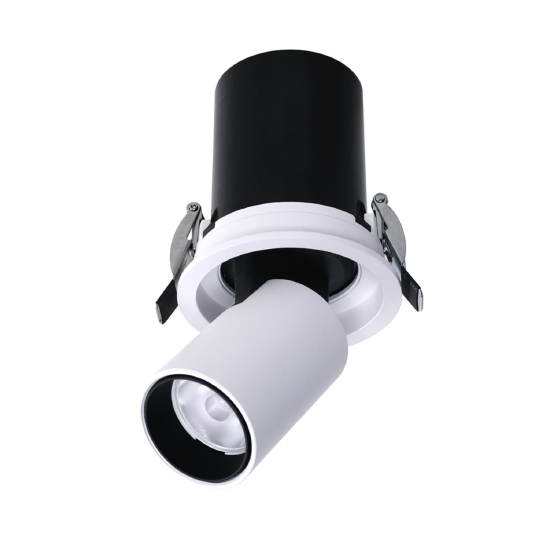

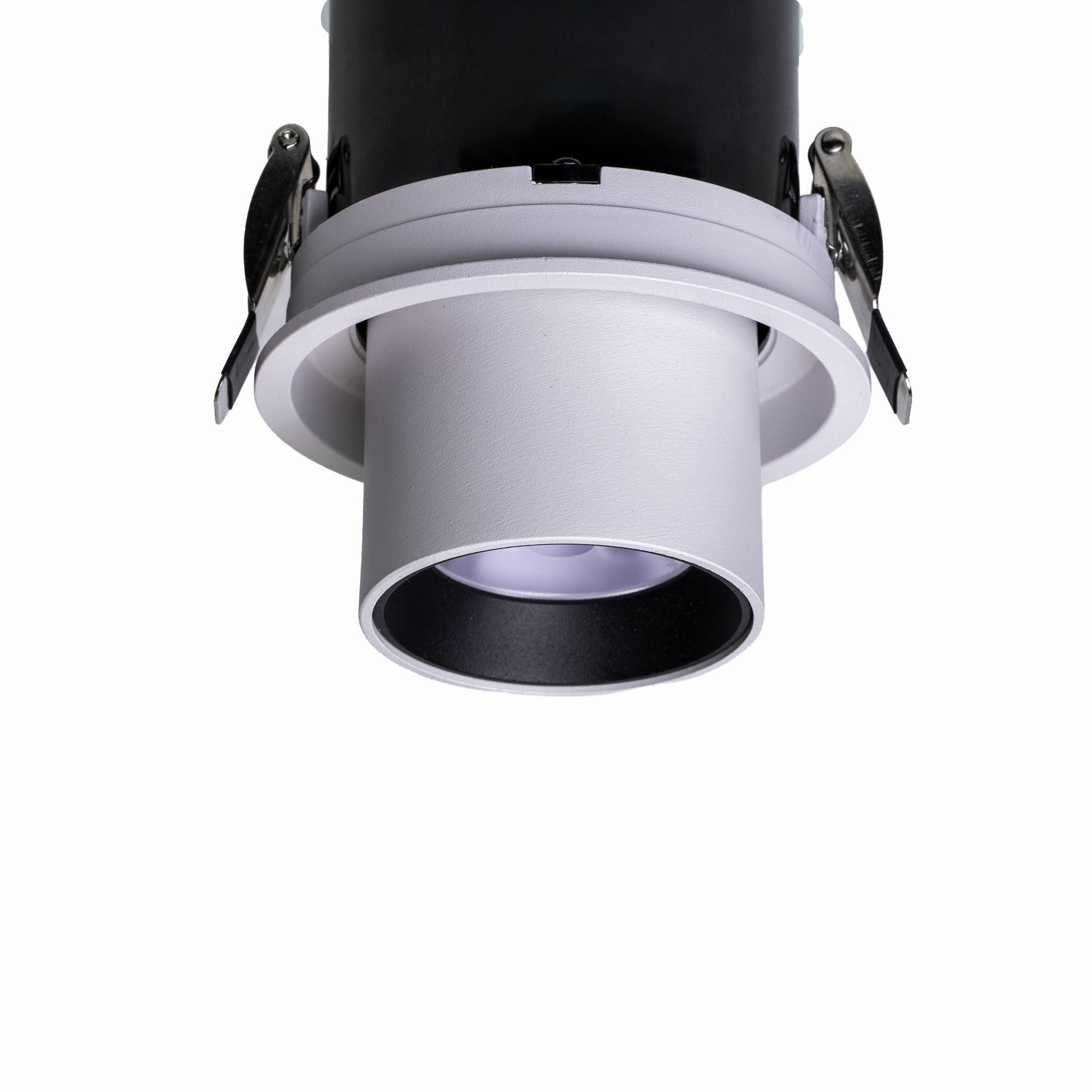

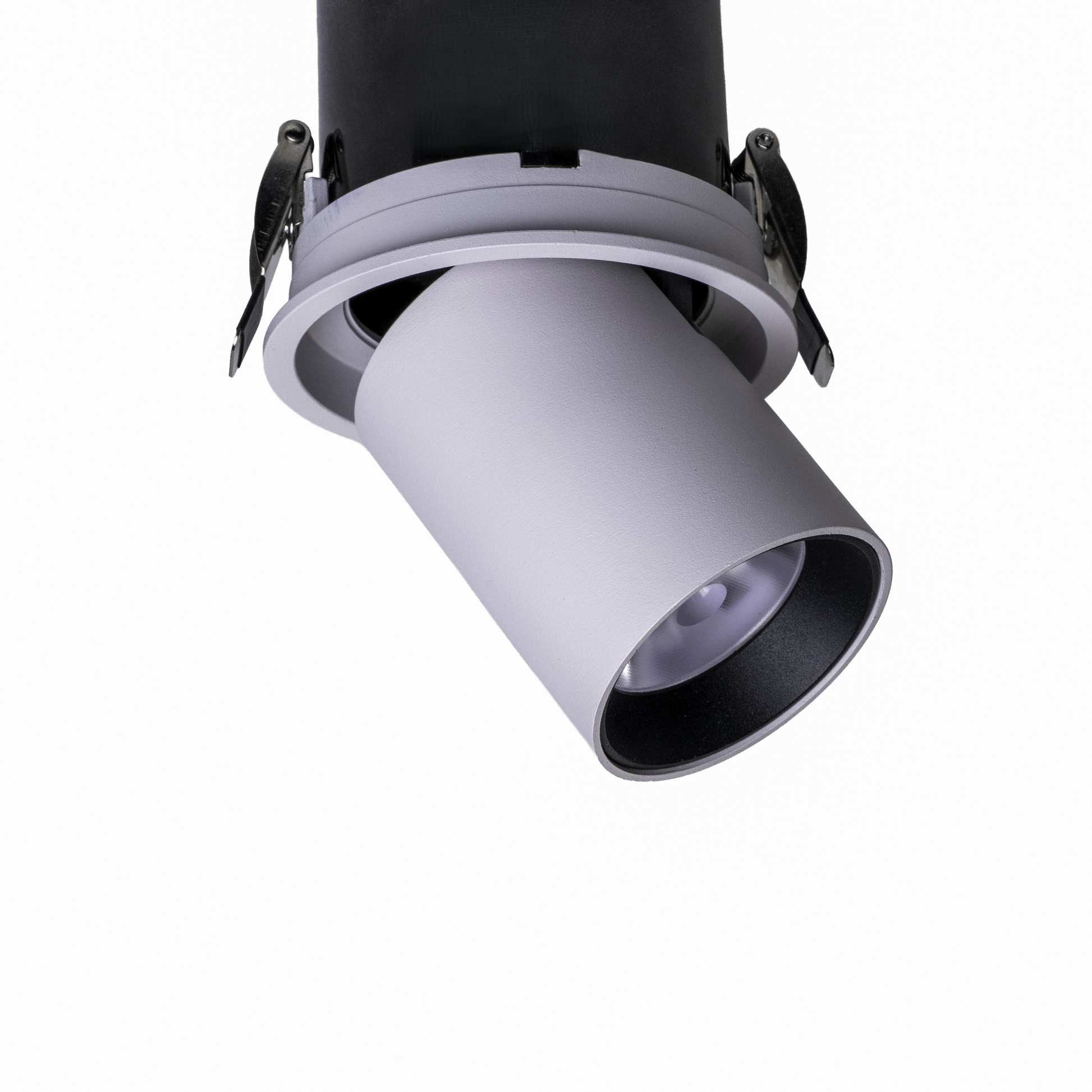

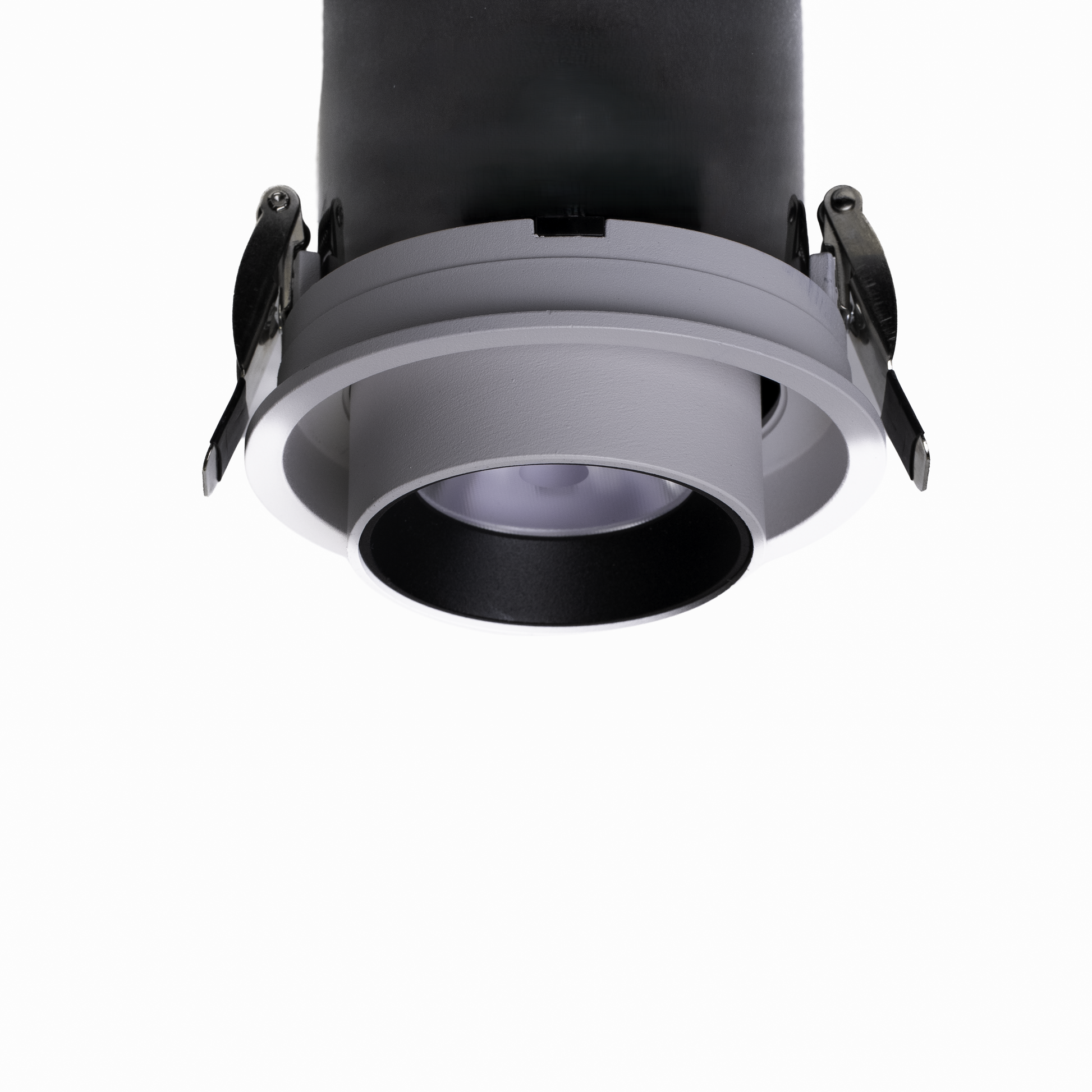

The Ø90mm Cutout Tunable Chelon is a retractable recessed spotlight that allows the beam to be repositioned without ceiling work, rotating up to 90° within its recessed housing. Available in 10W, 15W, and 18W with 24° and 36° beam angles, it suits galleries, retail, and residential spaces where lighting needs to adapt as layouts change.
Compatible with DALI for dimming and scene control, it is offered in 2700K, 3000K, and 4000K. At 111lm/w with a UGR below 18, CRI 90, and IP44 as standard, it combines strong output efficiency with genuine positional flexibility, making it a compelling choice for spaces where lighting needs to work as hard as the design does.
Luminaire Specification
| Dimming | DALI, On/Off |
| Light Source | COB |
| Efficiency (lm/w) | 111 lm/w |
| Colour Temperature | 2700K, 3000K, 4000K |
| CRI | 90 |
| UGR Rating | <18 |
| SDCM | 1 |
| IP Rating | IP44 |
| Cut Out | Ø 90 mm |
| Installation | Recessed |
Technical Specification
| Driver Supplied | BOKE |
| Driver Location | Remote |
| Input Voltage | AC220-240V |
| Rated Hours | > 50,000hrs |
| Working Temp | -25°C~+50°C |
