Downlights

Bell

DALI-2 Downlight

Cut-out
Ø 90mm
Colour temperature
3000K, 4000K, 2700K-6000K
IP rating
IP44, IP65
CRI
90 (95 Option)

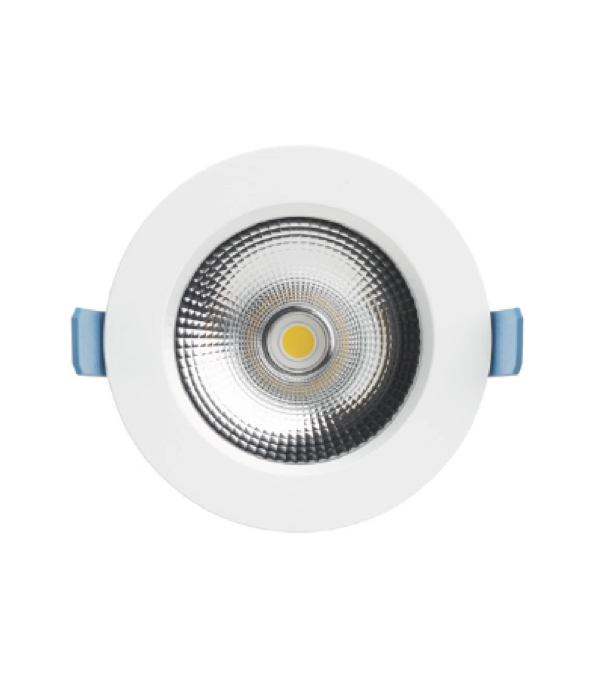

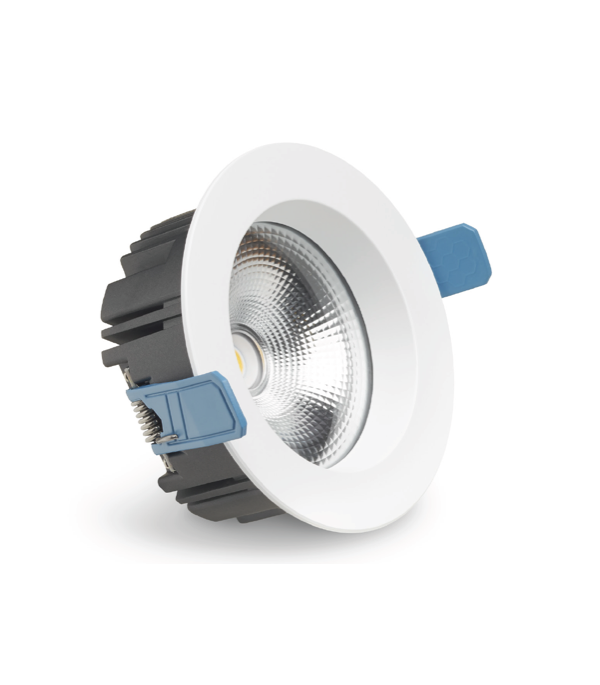

Bell is a DALI-2 recessed downlight with an Ø106mm diameter for an Ø90mm cut-out, available in 10W, 12W and 15W with a 90° beam. It is rated IP44 or IP65 with CRI 90 (95 optional) and UGR <19, and delivers 90 to 110 lm/W. The fitting is white or black, with 3000K, 4000K or tunable white.

Available options

Wattage
IP Rating
Add to job quote

Pricing, lead times and configurations are confirmed on quotation.

Specifications

Luminaire Specification

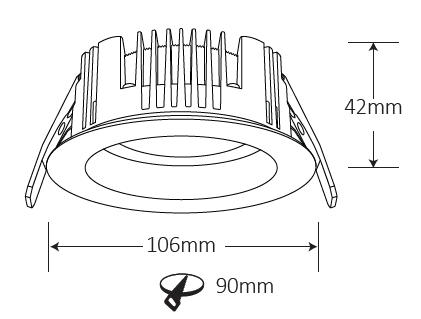

Cut Out
Ø 90mm
Diameter
Ø 106mm
Wattage
10W, 12W, 15W
Colour Temperature
3000K, 4000K, 2700K-6000K
Beam Angle
90°
IP Rating
IP44, IP65
Fitting Colour
White, Black
Dimmable
DALI-2
Light Source Brand
COB
Efficiency (lm/W)
90-110lm/w
CRI
90 (95 Option)
UGR Rating
<19
Installation
Recessed

Technical Specification

Driver Supplied
Included
Rated Voltage
220-240VAC 50-60Hz
Working Temp
25 ~ +45C
Inrush Current
5A 50µs
Thermal Protection
C.5.a.
Body Material
Aluminium
Rated Hours
> 50,000hrs
Warranty
5 Years
