tunable Locke (DALI-2 Track Light)
tunable Locke (DALI-2 Track Light)
Please contact us for an IES File.

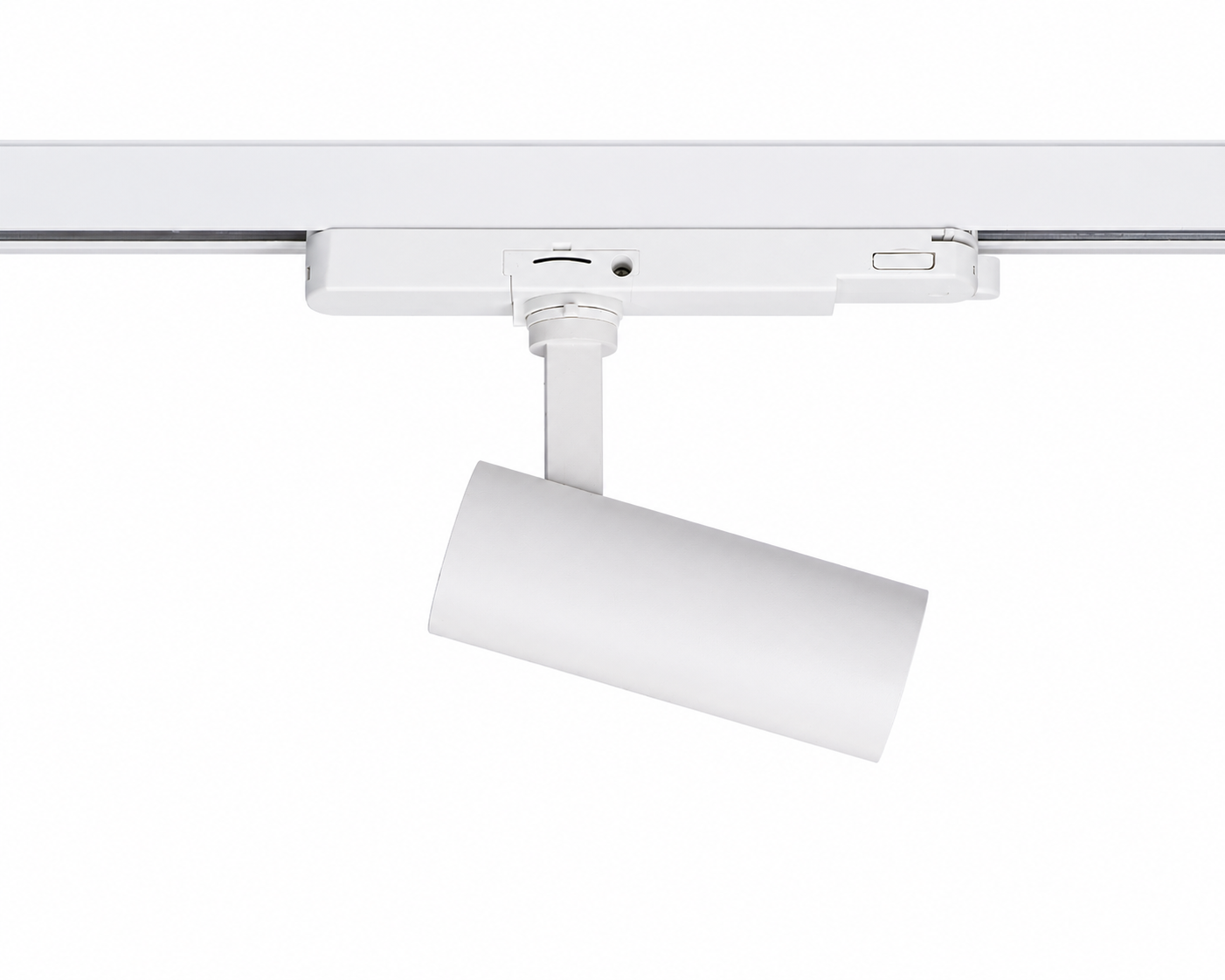

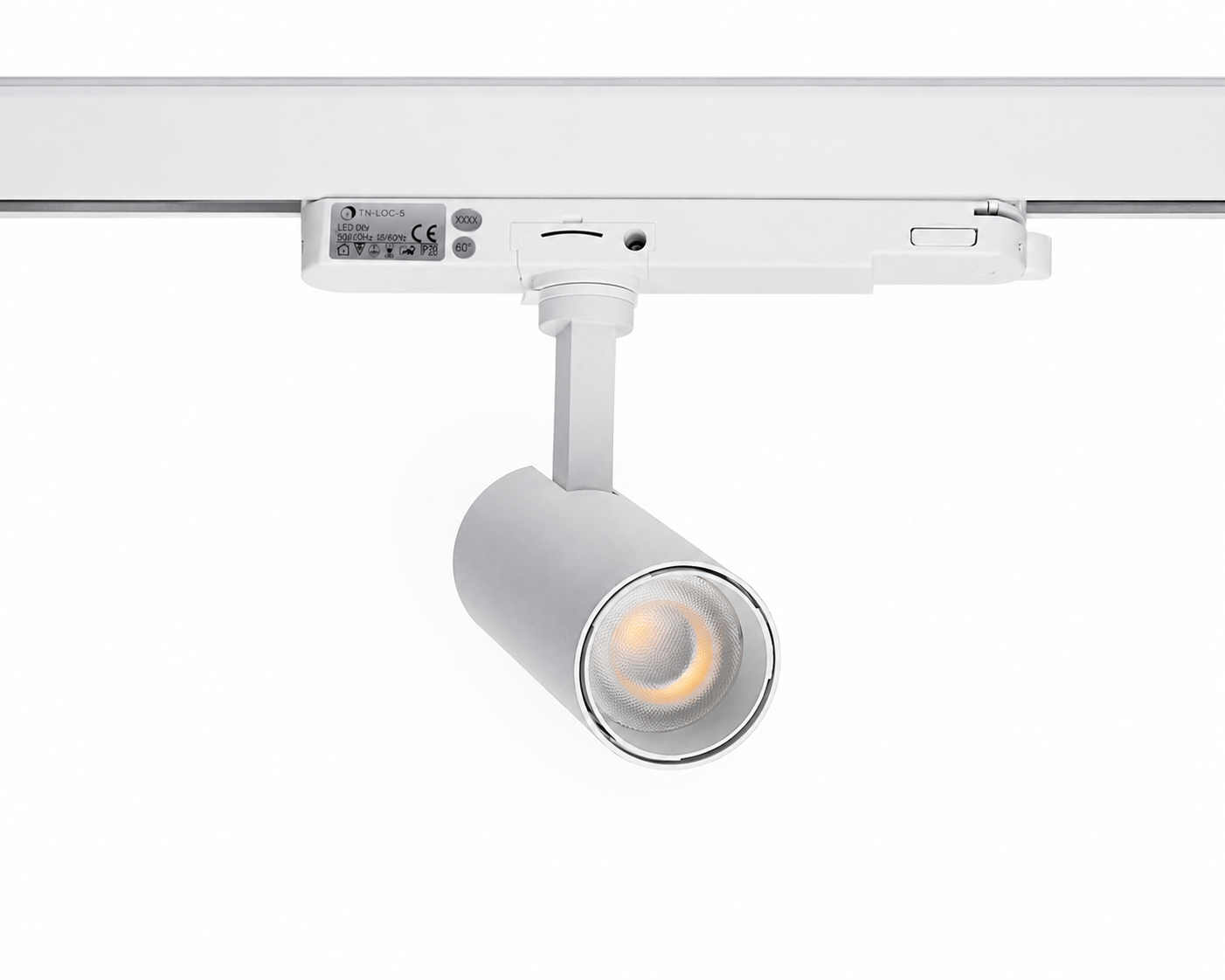

The Tunable Locke is a 1-circuit DALI track spotlight available in three sizes, with diameters from 50mm to 70mm and outputs from 10W to 30W. Beam angles of 15°, 24°, 36°, and 60° suit a wide range of commercial lighting tasks, and 355° rotation with full tilt adjustability allows precise aiming after installation on Tunable DALI track.
Compatible with DALI-2 for dimming and scene control, it is available in 3000K and 4000K with CRI 90. A UGR below 12 makes it one of the lowest-glare track fittings available, making it a compelling choice for schools, retail, cafes, and art galleries where output quality and glare control are equally important.
Luminaire Specification
| Dimming | DALI, On/Off |
| Light Source | CREE |
| Efficiency (lm/w) | 90 lm/w (S) 110 lm/w (M, L) |
| Colour Temperature | 3000K, 4000K |
| CRI | 90 |
| UGR Rating | <12 |
| SDCM | 3 |
| IP Rating | IP20 |
| Cut Out | Ø 50mm - Ø 70mm |
| Installation | Track Mounted |
Technical Specification
| Driver Supplied | Allooking |
| Track Circuits | Four Wires, One Circuit |
| Input Voltage | AC220-240V |
| Rated Hours | > 50,000hrs |
| Working Temp | -25°C~+50°C |
