Download Datasheet
Please contact us for an IES File.
Luminaire Specification
| SKU |
TN-CRICK |

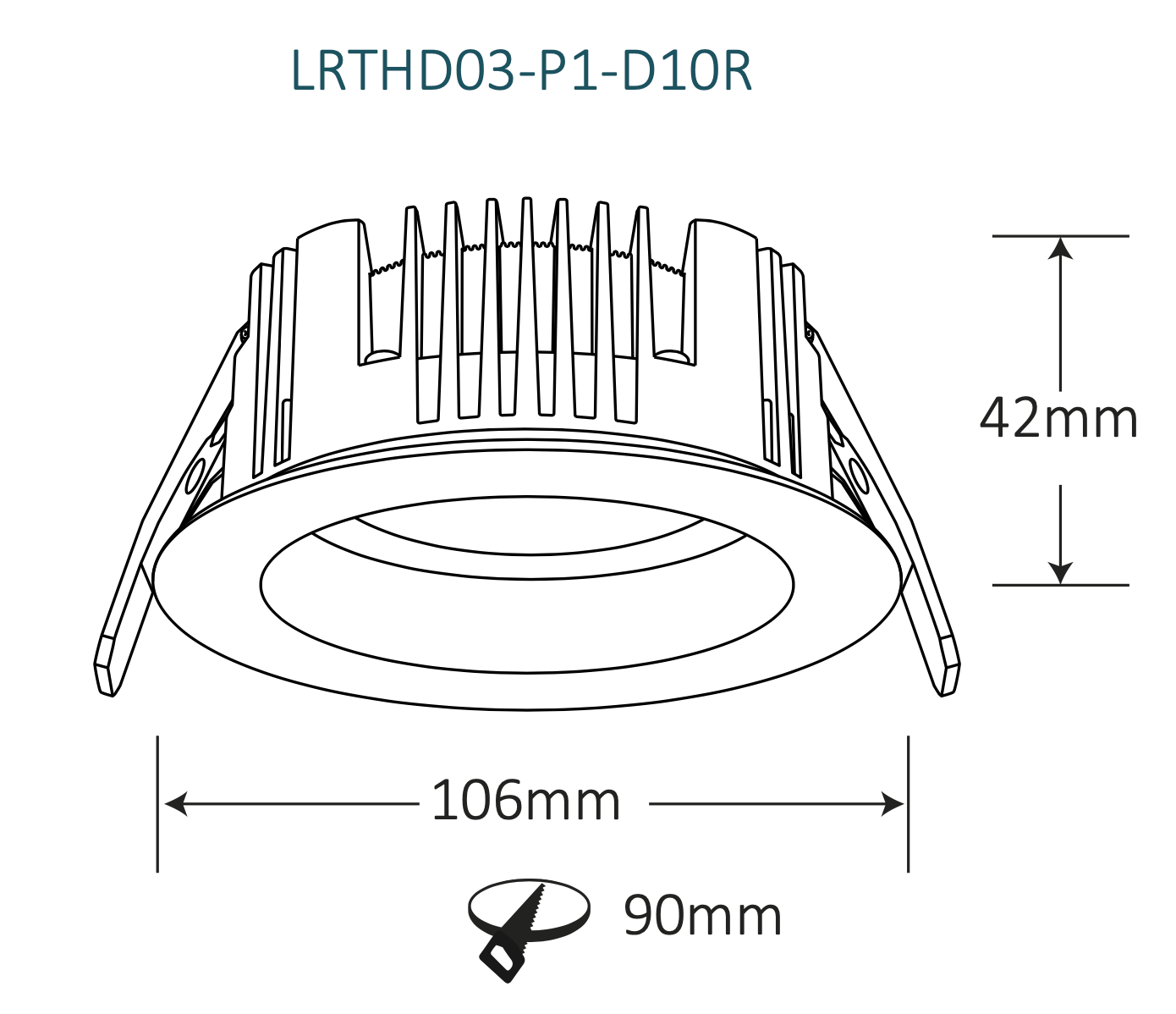

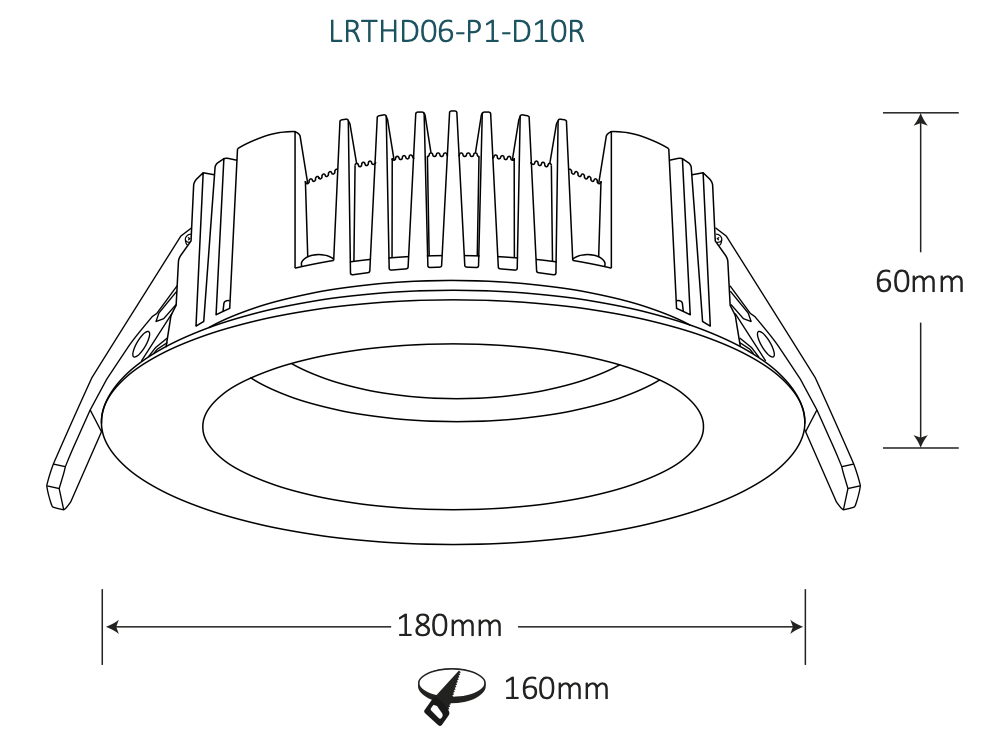

| Diameter |
Ø 106 - 180mm |
| Wattage |
7W - 30W |
| Colour Temperature |
3000K, 4000K, 2700K-6000K |
| Beam Angle |
90° |
| IP Rating |
IP44, IP65 |
| Fitting Colour |
White, Black |
| Dimmable |
DALI |
| Light Source Brand |
Samsung COB |
| Efficiency (lm/w) |
90-110lm/w |
| CRI |
90 (95 Option) |
Technical Specification
| Driver Supplied |
Boke DWL Series |
| Rated Voltage |
220-240VAC 50-60Hz |
| Working Temp |
25 ~ +45C |
| in Rush Current |
5A 50µs |
| Thermal Protection |
C.5.a. |
| Body Material |
Aluminium |
