tunable Bell Modular
tunable Bell Modular
Please contact us for a Datasheet.
Please contact us for an IES File.

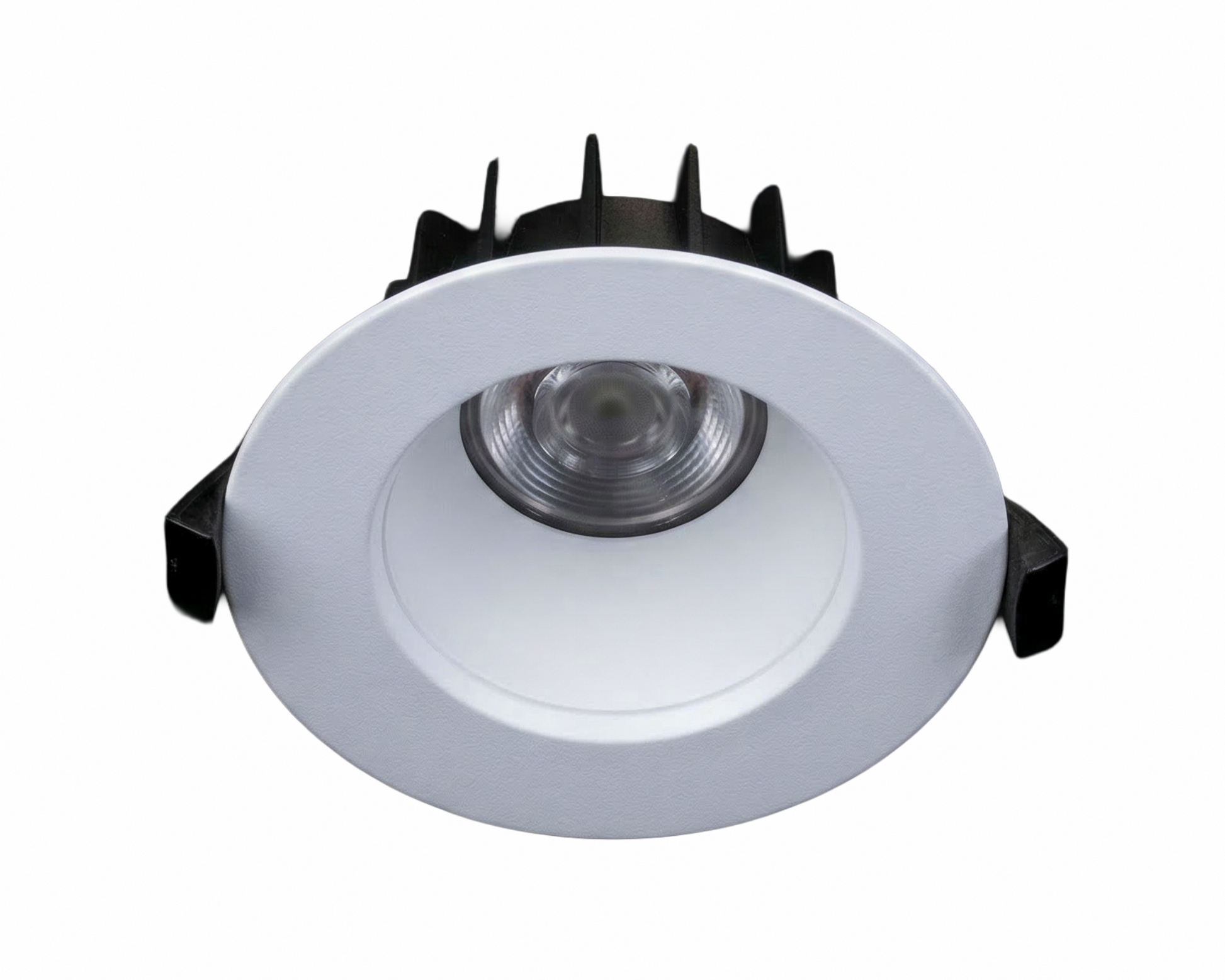

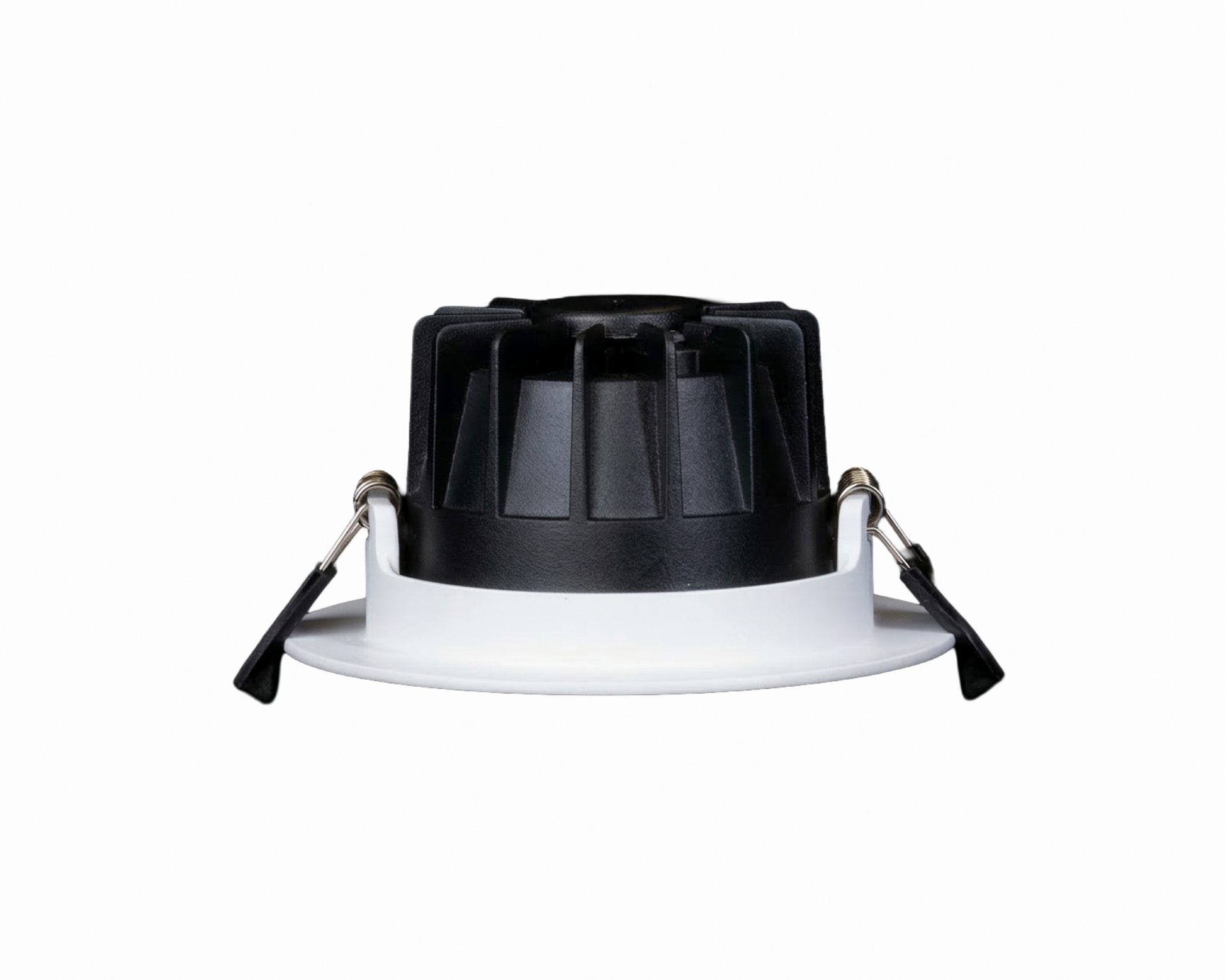

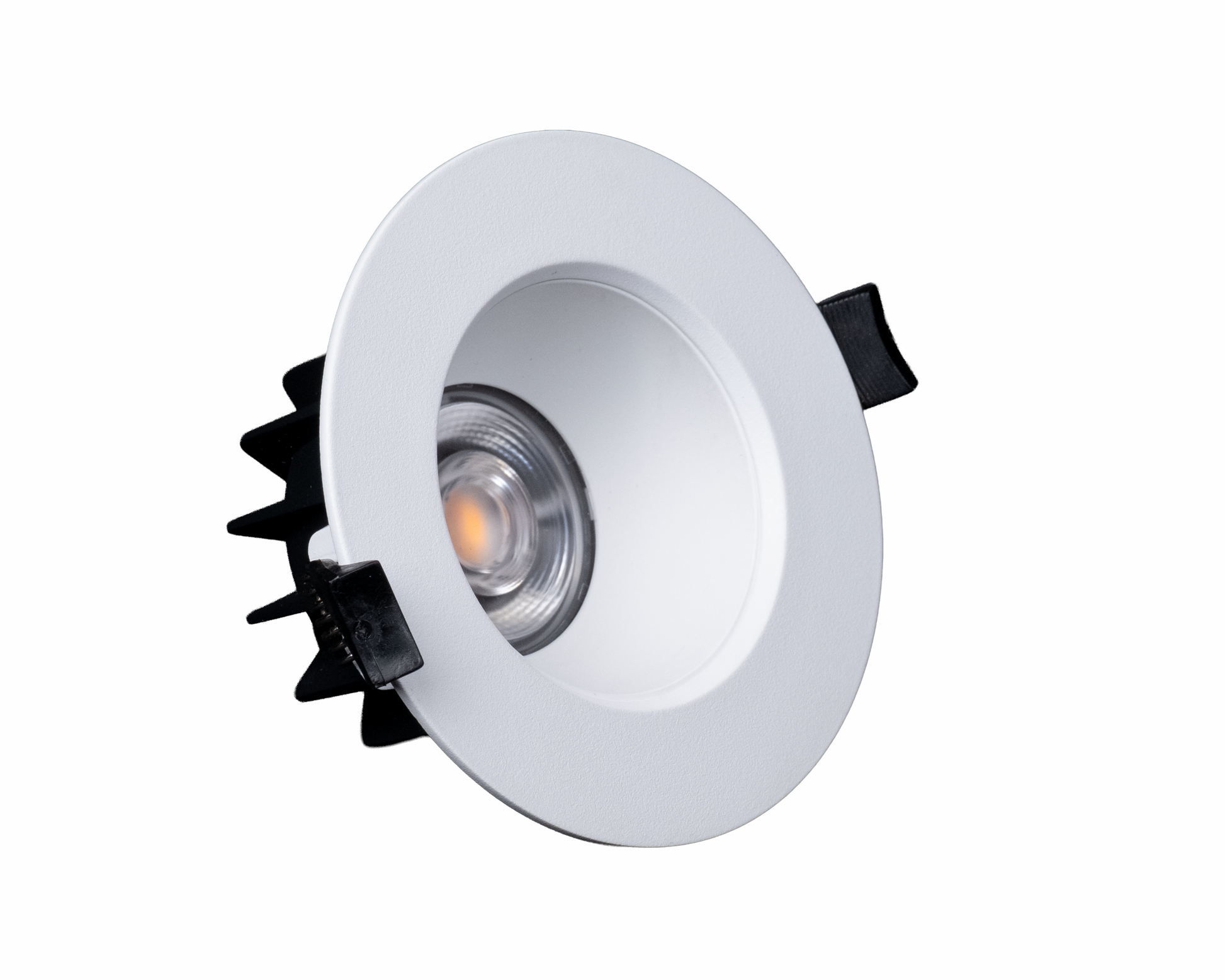

The Ø90mm Cutout Tunable Bell Modular Downlight is a versatile, everyday recessed solution suited to both residential and light commercial applications, with a 90mm cut-out ideal for replacing existing fittings in retrofit projects. Available in 10W and 13W with 24°, 36°, and 60° beam angles, it suits both focused accent lighting and general illumination.
Offered in 2700K–6500K Tunable White (DT8), as well as 3000K and 4000K, it integrates seamlessly with DALI control systems for precise dimming and colour tuning. Its modular design allows trims and reflectors to be changed on-site, delivering strong flexibility, clean aesthetics, and practical installation advantages.
Luminaire Specification
| Dimming | DALI, On/Off |
| Light Source | COB |
| Efficiency (lm/w) | 90 lm/w |
| Colour Temperature | 2700K-6500K, 3000K, 4000K |
| CRI | 90 |
| UGR Rating | <19 |
| SDCM | 3 |
| IP Rating | IP40 |
| Cut Out | Ø 90mm |
| Installation | Recessed |
Technical Specification
| Driver Supplied | BOKE |
| Driver Location | Remote |
| Input Voltage | AC220-240V |
| Rated Hours | > 50,000hrs |
| Working Temp | -25°C~+50°C |
