Arca Double
DALI-2 Box Downlight
- Cut-out
- 82 x 176mm
- Colour temperature
- 2700K-6000K, 2700K, 3000K, 4000K
- IP rating
- IP44
- CRI
- 90

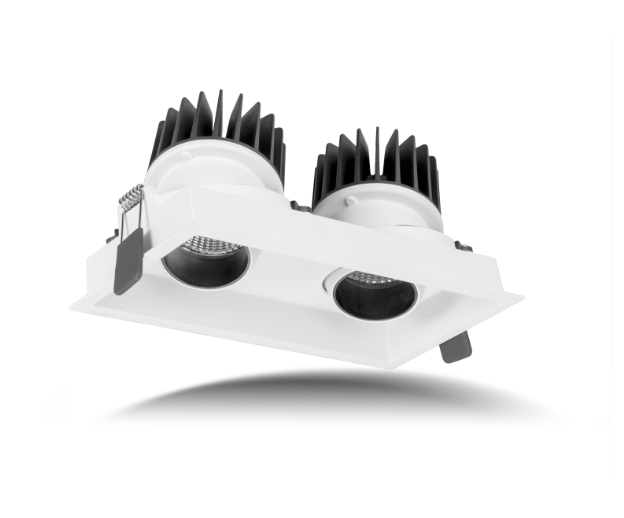

Arca Double is a DALI-2 box recessed downlight with a COB light source, fitted into an 82 x 176mm cut-out. It is rated IP44 with CRI 90, UGR <19 and SDCM 3. Available in 6W, 10W and 15W with 15°, 24° or 36° beams, in white or black.
Pricing, lead times and configurations are confirmed on quotation.
Specifications
Luminaire Specification
- Dimming
- DALI-2
- Light Source
- COB
- Efficiency (lm/W)
- 100 lm/w
- Colour Temperature
- 2700K-6000K, 2700K, 3000K, 4000K
- IK Rating
- IKTBC
- CRI
- 90
- UGR Rating
- <19
- SDCM
- 3
- IP Rating
- IP44
- Cut Out
- 82 x 176mm
- Installation
- Recessed
Technical Specification
- Driver Supplied
- Included
- Driver Location
- Remote
- Input Voltage
- AC220-240V
- Rated Hours
- > 50,000hrs
- Working Temp
- -25°C~+50°C
- Warranty
- 5 Years
