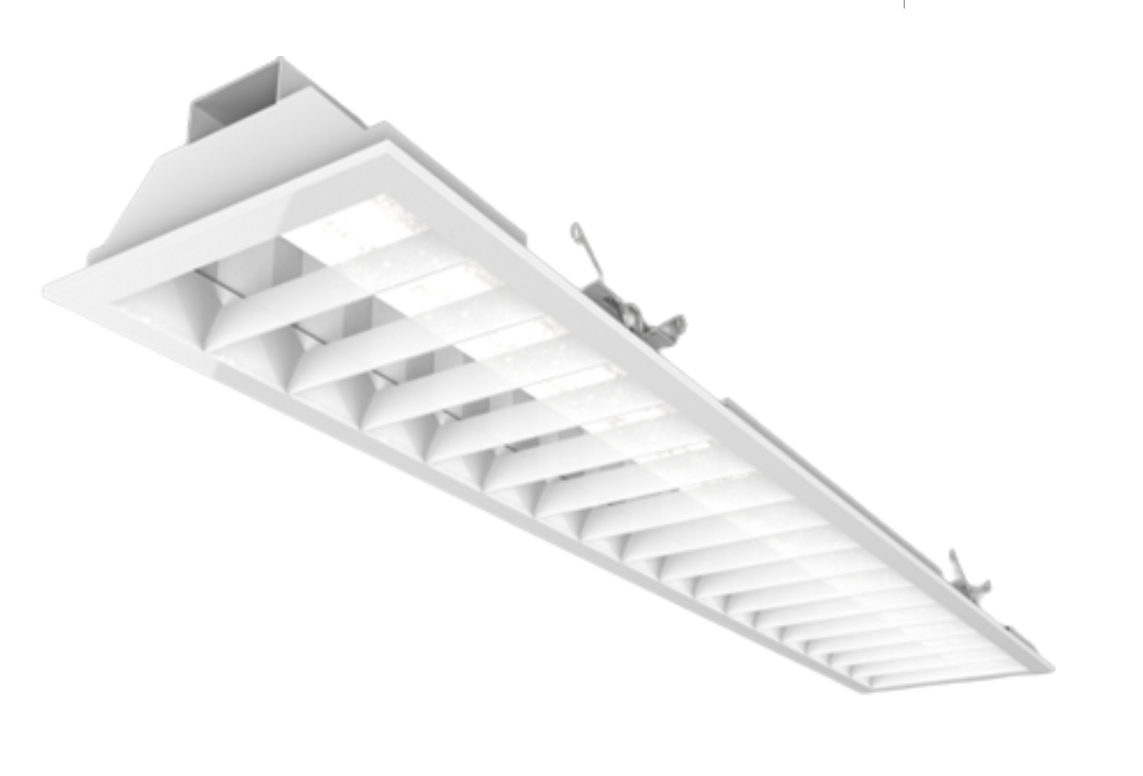

tunable Venturi (DALI-2 LED Troffer)
tunable Venturi (DALI-2 LED Troffer)
Please contact us for an IES File.
- UGR <19
- 50,000hrs lifespan
- Grille design provides eye protection & comfortable light
- Ripple free dimming prevents visible flickering
- Integrated CCT Dial Switch (2700K/4000K/6500K)
- Aluminium frame & metal plate
- Recessed, Wire & Rod Suspended mounting options available
| SKU | TN-VEN-X | ||
|---|---|---|---|
| UGR Rating | <19 | Wattage | 18-30W |
| Colour Temperature | CCT (2700K, 4000K, 6500K) | ||
| Beam Angle |
 110° |
|
|
| IP Rating | IP20 | ||
| Fitting Colour | White | ||
| Dimmable | On/Off, DALI | ||
| Light Source | CREE LED | ||
| Efficiency (lm/w) | 148lm/w | ||
| CRI | 90 | ||
| Driver Supplied | Integrated | ||
|---|---|---|---|
| Rated Voltage | 220-240VAC 50-60Hz | ||
| Working Temp | 25 ~ +60˚C | ||
| In Rush Current | 5A 50μs | ||
| Body Material | Aluminium | ||
| Warranty | 5 Years | ||
