Download Datasheet
Please contact us for an IES File.

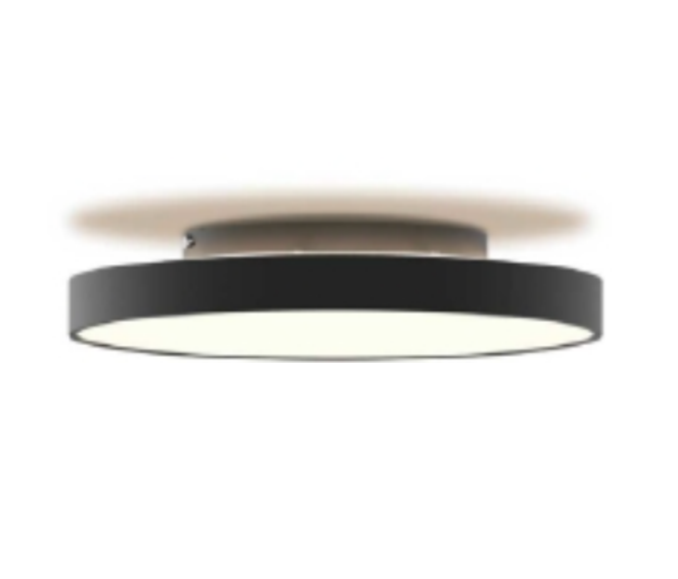

- Surface Mount, Pendant Suspension or Recessed Installation
-
CCT Switch, Tunable White or RGBW
- Sizes ranging from Ø 600mm - Ø 1200mm
- UGR <19 with microprismatic diffuser
-
Ripple free dimming prevents visible flickering
- Bridgelux SMD LEDs
LUMINAIRE SPECIFICATION
| SKU |
TN-MEY-S-X |
| UGR Rating |
<19 |
Wattage |
30 - 100W |
| Colour Temperature |
3000K, 4000K, 2700-6500K |
|
|
|
|
| IP Rating |
IP20 |
| Fitting Colour |
White, Black |
| Dimmable |
On/Off, DALI
|
| Light Source |
SMD |
| Efficiency (lm/w) |
100 lm/w - 120 lm/w
|
| CRI |
90 |
TECHNICAL SPECIFICATION
| Driver Supplied |
Integrated |
| Rated Voltage |
220-240VAC 50-60Hz |
| Working Temp |
25 ~ +60˚C |
| In Rush Current |
5A 50μs |
| Body Material |
Aluminium |
| Warranty |
5 Years |
